WISE-4050-LAN

This module is used for counting products
(frequency up to 3 kHz)

Plan the installation

This module needs to be connected to a 24V DC signal that goes high and low each time a product is produced.
Normally, the photocells and inductive sensors are wired back to a cabinet and PLC (check the wiring diagram for the machine).
A relay or output from the PLC works for some applications.

Wiring

Power the module from a 24V DC power source in the control cabinet (10-30 vdc)
+Vs - plus 24V DC
-Vs - minus 24V DC

Product counter
DI0 - plus 24V DC from the product counter signal (photocell, relay, etc.)
DI COM - minus 24V DC

Configuration

Initial Mode

- Set SW2-P1 to OFF before you power the module
- SW1-P1 & P2 = OFF (Counting 24V signals)

Connection

  • Connect your computer using a cable to the I/O node
  • Set the IP settings on your computer to 10.0.0.xxx
    (I/O module has 10.0.0.1 in init mode)

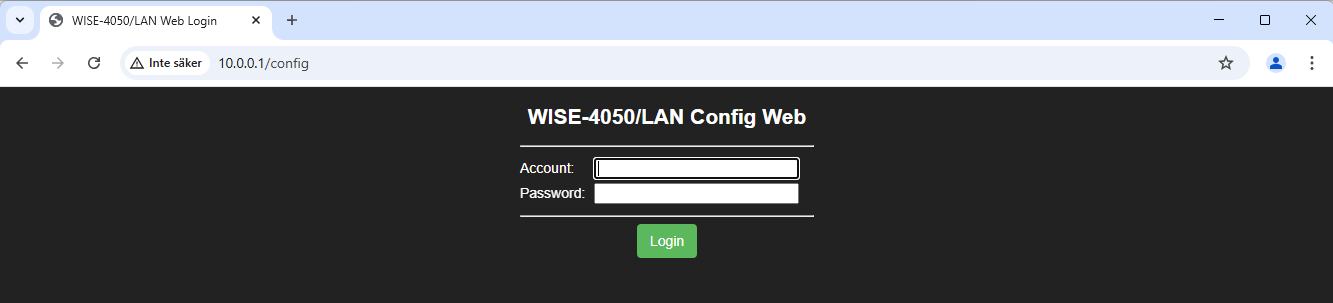

Login

- Go to 10.0.0.1/config using the web browser
Account: root
Password: 00000000

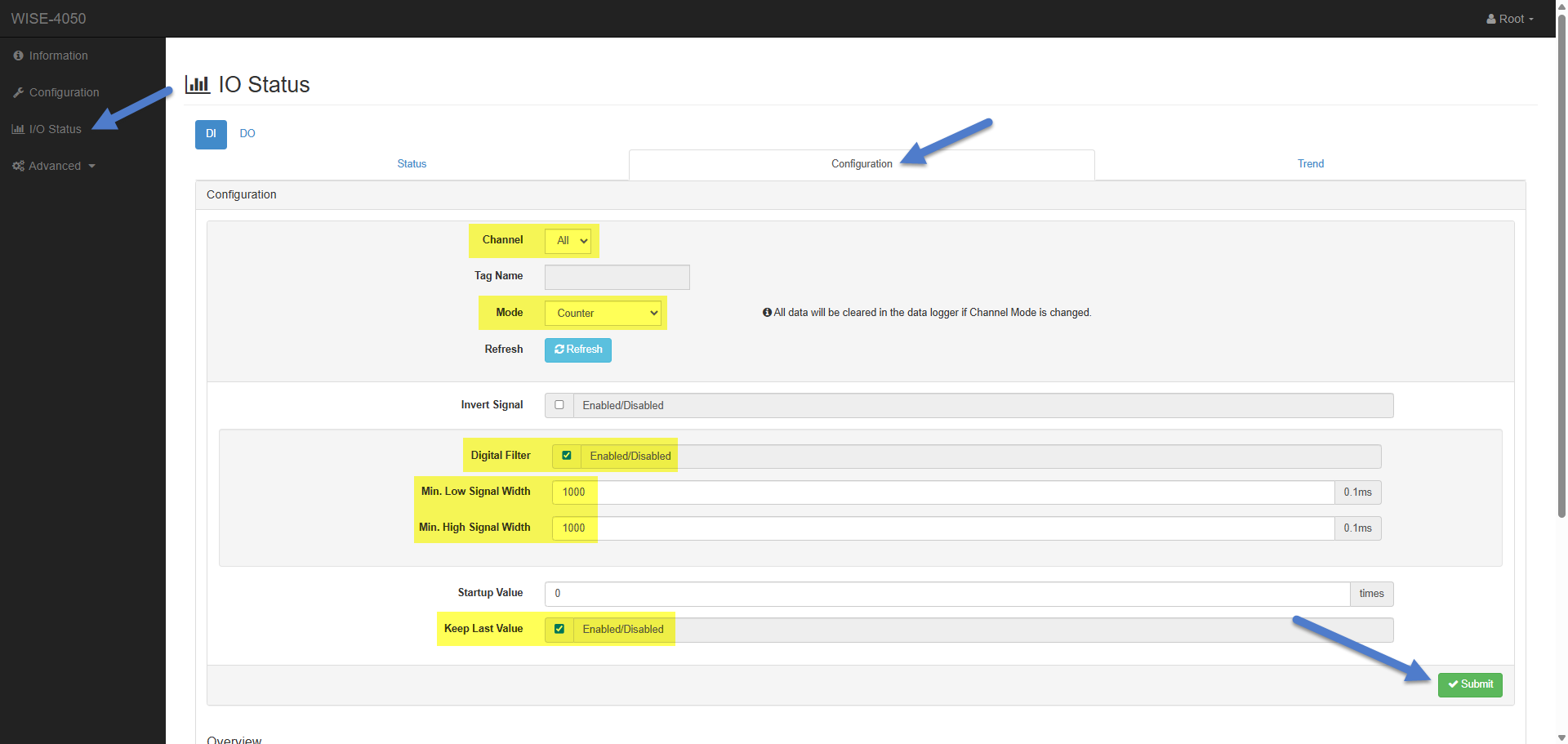

I/O Counter settings

Navigate to I/O Status / Configuration
Channel = ALL
Mode = Counter
Digital Filter = Enable
Min. Low Signal Width = 1000
Max. Low Signal Width = 1000
Keep Last Value = Enable
If you have a fast-moving production, you might need to use a lower "Signal Width"
1000 = 100ms works fine when connected to a relay. If connected to a transistor, you don't need "Digital Filter".

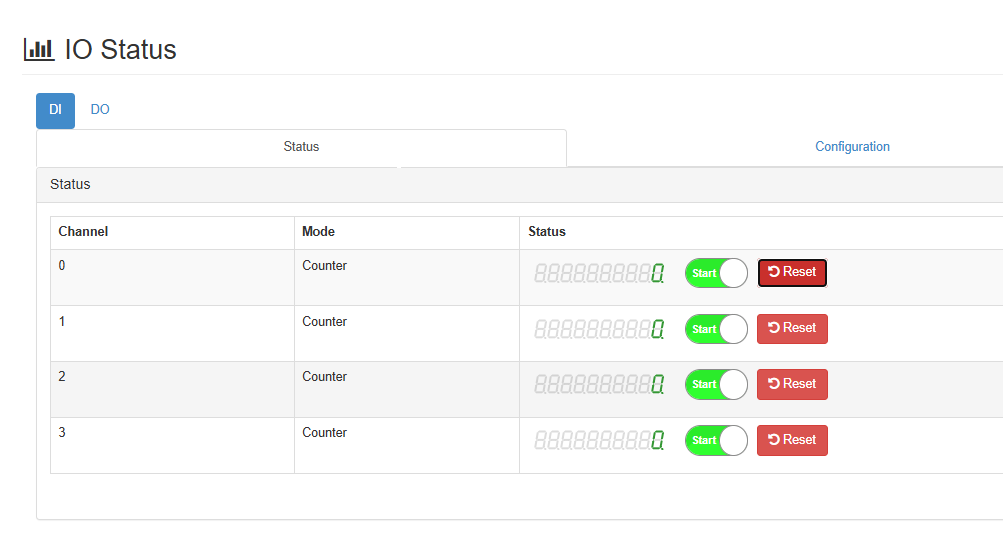

Monitor counters

You can check the counters in this view

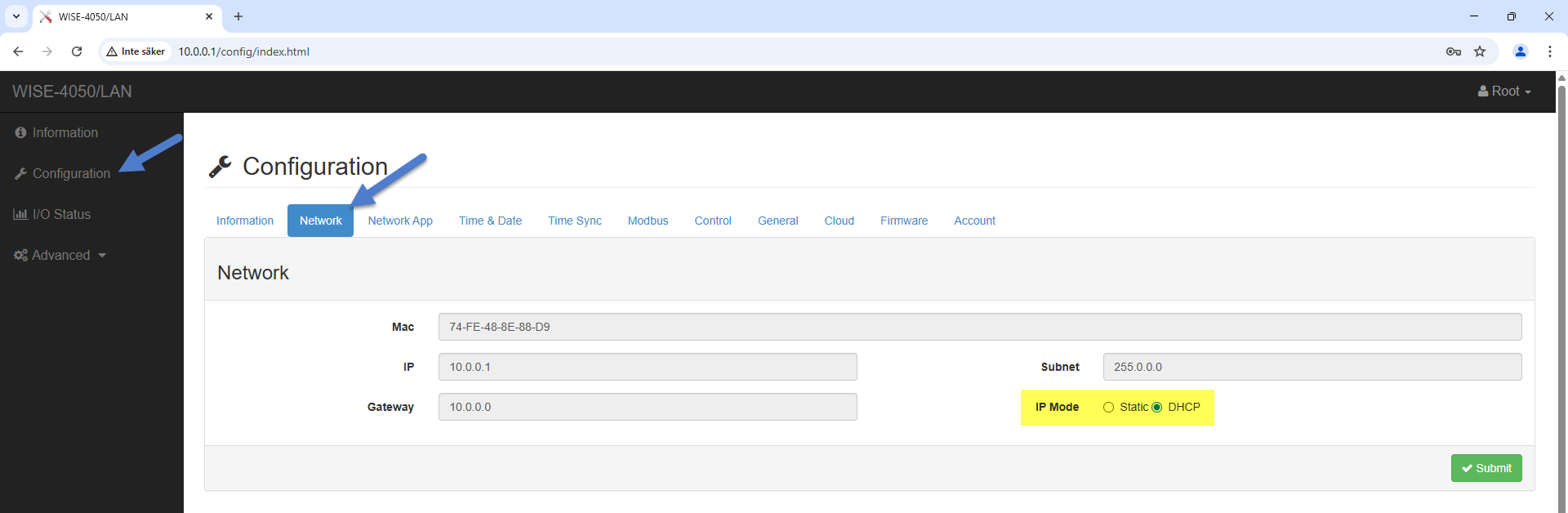

Network settings

Configuration/Network
- IP Mode = DHCP

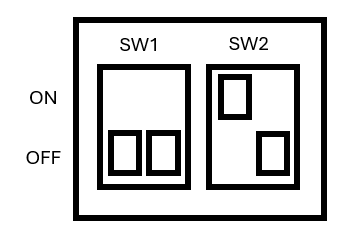

Normal Mode

- Restore SW2-P1 to ON
- Restart the I/O module

Find IP Address

  • IT can find the IP address using the MAC address when connected to Wi-Fi
  • You can also find this by setting the module to init mode again and logging in using the web interface
  • Advanced IP Scanner can be used if you are on the same network

Reserve the IP address

  • IT needs to reserve the IP address assigned by the DHCP server

Controller

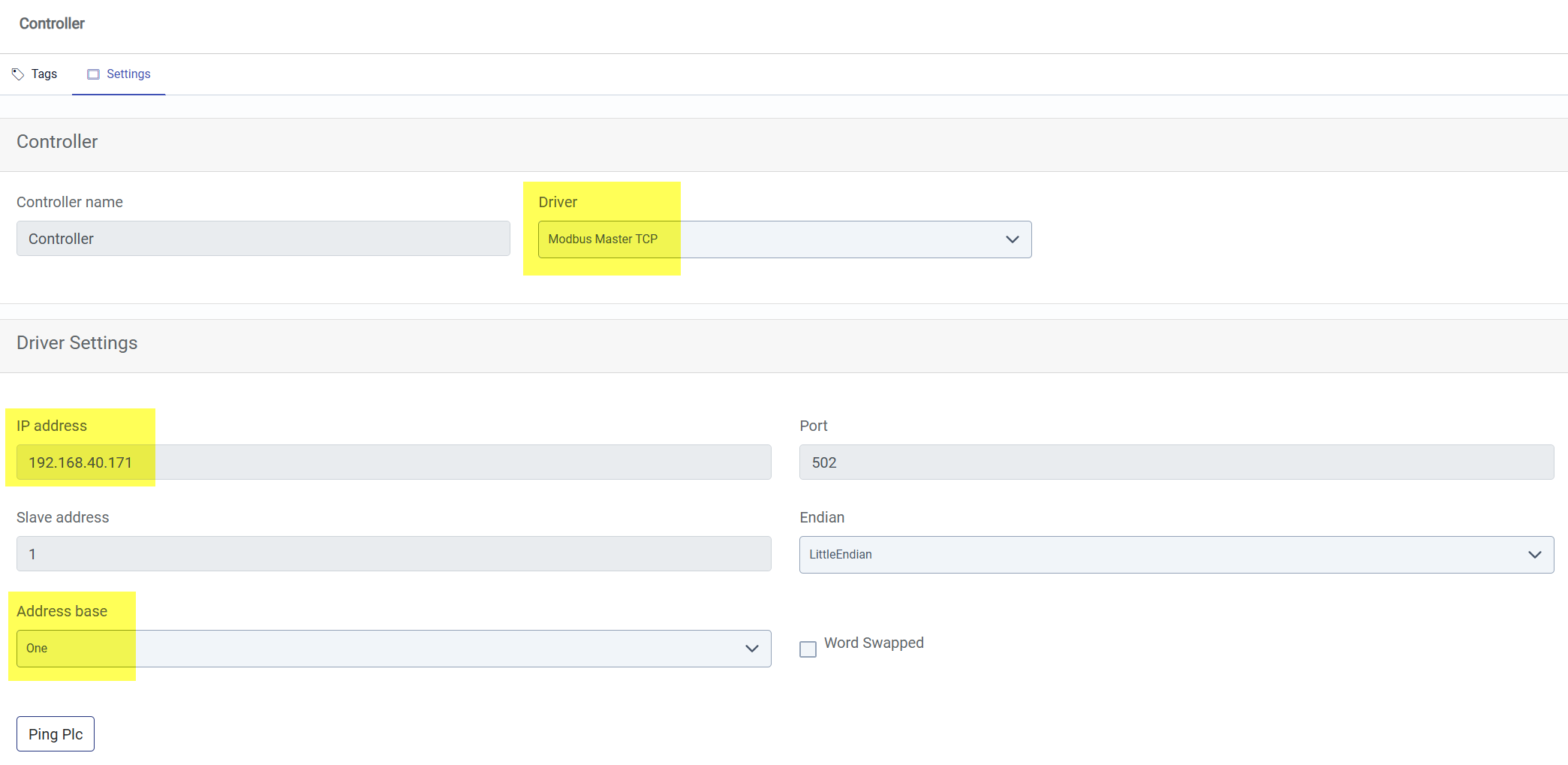

Settings

- IP address = xxx.xxx.xxx.xxx
- Address Base = One

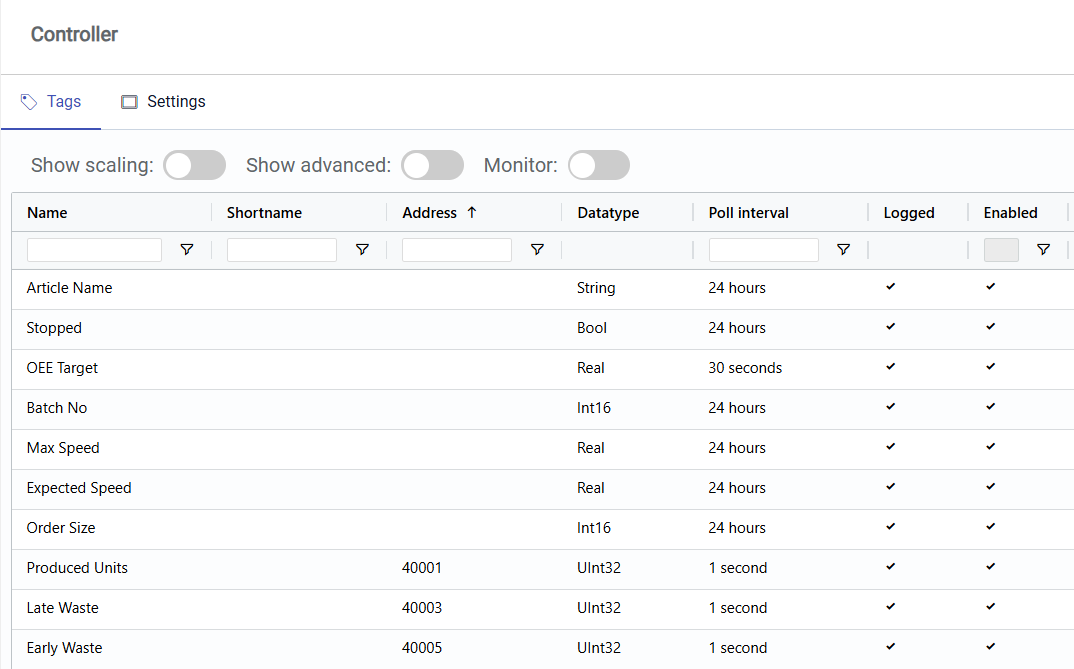

Tags

- Counter 1 (DI0) - Modbus Address: 40 001, Datatype: INT32

Manual reference guide
